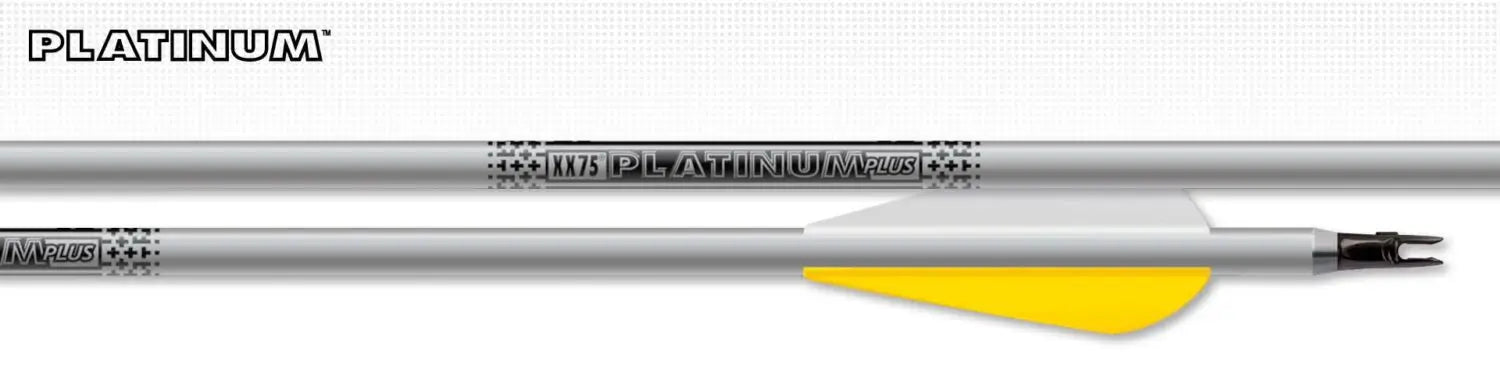

Easton XX75 Platinum Plus (Bare Shafts)

$46.49
$46.49

Find compatible components:  Arrow Compatibility Wizard


XX75 PLATINUM PLUS™


Easton Archery-XX75 Platinum Plus

ABOUT THE PRODUCT

Platinum Plus is a premium, intermediate priced shaft for all levels of recreational and competitive archery.

SPECIFICATIONS

  • 7075-T9 aerospace alloy
  • Hard-anodized finish
  • Guaranteed straightness: ± .002″
  • Weight tolerance: ± 1%
  • Strength (psi): 96,000
  • Super or G UNI bushings—installed
  • Components—sold separately

  • Sizes: 1416, 1516, 1616, 1716, 1816, 1913, 1916, 2013, 2016, 2114, 2213


Spine
Pkg Qty

Find compatible components:  Arrow Compatibility Wizard



 Easton Archery-XX75 Platinum Plus
Size Spine @ 28″ Span
Deflection in inches 		Shaft Weight
GPI 		Shaft O.D.
(inches) 		Minimum Stock Length
(inches) 		Bushing Weight 4mm
(grains) 		Bushing Weight 6.5mm
(grains) 		Bullet Point Weight
(grains) 		NIBB Point Weight
(grains) 		Insert Weight
(grains) 		Screw-in Point Size











2213 0.464 9.8 .344 30.5 N/A 15 90 108 52 11/32
2114 0.513 9.9 0.328 30 N/A 15 90 108 52 11/32
2016 0.537 10.6 0.312 31 17 12 90 110 40 11/32
2013 0.616 9.0 0.313 32 14 9 90 103 N/A N/A
1916 0.627 10.0 0.297 30 13 9 90 88 30 11/32
1913 0.738 8.3 0.298 31 14 9 90 88 30 11/32
1816 0.759 9.3 0.281 29 11 7 75 78 25 5/16
1716 0.882 9.0 0.266 29 9 N/A 65 64 N/A N/A
1616 1.082 8.4 0.250 27.5 7 N/A 60 56 N/A N/A
1516 1.405 7.3 0.234 26.75 5 N/A 50 51 N/A N/A
1416 1.685 7.2 0.219 26.25 5 N/A 50 61 N/A N/A


ABOUT THE PRODUCT

Platinum Plus is a premium, intermediate priced shaft for all levels of recreational and competitive archery.

SPECIFICATIONS
  • 7075-T9 aerospace alloy
  • Hard-anodized finish
  • Guaranteed straightness: ± .002″
  • Weight tolerance: ± 1%
  • Strength (psi): 96,000
  • Super or G UNI bushings—installed
  • Components—sold separately

  • Sizes: 1416, 1516, 1616, 1716, 1816, 1913, 1916, 2013, 2016, 2114, 2213
