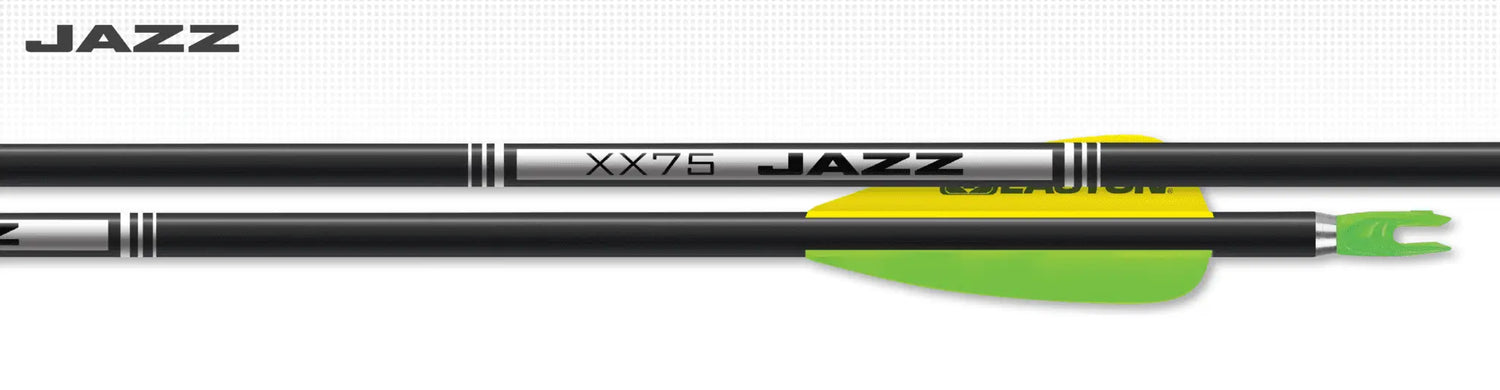

Easton XX75 Jazz (Bare Shafts)

$27.49
$27.49

Find compatible components:  Arrow Compatibility Wizard

X75 JAZZ™


Easton Archery-XX75 Jazz

ABOUT THE PRODUCT

Jazz features all the accuracy benefits of XX75 alloy and comes in sizes all the way down to 1214 to outfit any beginning archer.

SPECIFICATIONS

  • 7075 aerospace alloy
  • Hard-anodized finish
  • Guaranteed straightness: ± .005″
  • Weight tolerance: ± 2%
  • Strength (psi): 90,000
  • Bushing installed
  • Components—sold separately

  • Sizes : 1214, 1413, 1416, 1516, 1616, 1716, 1816, 1916, 2016

    *1214 size uses the direct-fit G Nock

Spine
Pkg Qty

Find compatible components:  Arrow Compatibility Wizard


 Easton Archery-XX75 Jazz
Size Spine @ 28″ Span
(deflection in inches) 		Shaft Weight
GPI 		Shaft O.D.
(inches) 		Minimum Stock Length
(inches) 		Nock Size Bullet Point Weight
(grains) 		Economy Point Weight
(grains) 		NIBB Point Weight
(grains) 		Insert Weight
(grains) 		Screw In Point
Size











2016 0.567 10.6 0.312 32 6.5mm 90 70 80 20 5/16
1916 0.627 10.0 0.297 31 4mm 90 65 72 16 5/16
1816 0.759 9.3 0.281 30 4mm 75 60 63 12 9/32
1716 0.882 9.0 0.266 29 4mm 65 55 60 10 17/64
1616 1.082 8.4 0.250 28.5 4mm 60 50 56 N/A N/A
1516 1.405 7.3 0.234 27.5 4mm 50 45 48 N/A N/A
1416 1.685 7.2
 0.219 27 4mm 50 40 46 N/A N/A
1214 2.501 5.9 0.197 26.5 4mm (direct fit) 45 N/A N/A N/A N/A


ABOUT THE PRODUCT

Jazz features all the accuracy benefits of XX75 alloy and comes in sizes all the way down to 1214 to outfit any beginning archer.

SPECIFICATIONS
  • 7075 aerospace alloy
  • Hard-anodized finish
  • Guaranteed straightness: ± .005″
  • Weight tolerance: ± 2%
  • Strength (psi): 90,000
  • Bushing installed
  • Components—sold separately

  • Sizes : 1214, 1413, 1416, 1516, 1616, 1716, 1816, 1916, 2016

    *1214 size uses the direct-fit G Nock
